Assembly Guidelines

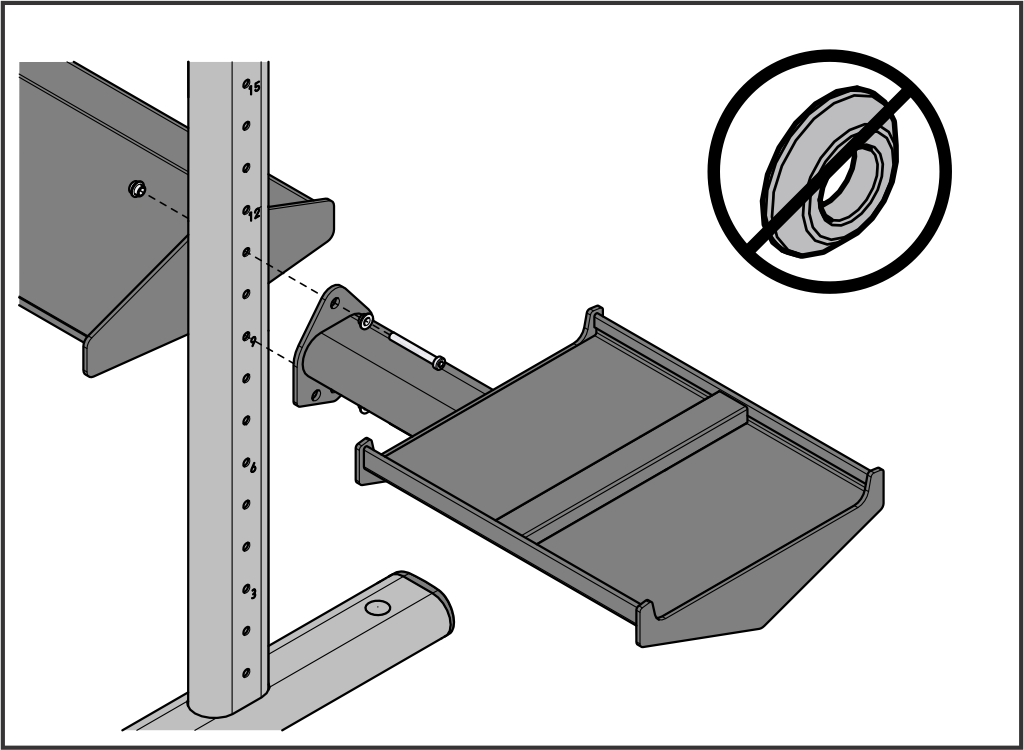

When installing two options side by side:

• 1/4" spacers not required if options share same mounting holes.

When installing Power Block and Dumbbell Storage:

• Select one of three 15 degree positions.

When installing the Mat Holder:

• Rotate mat holder 5 degrees upward so mats stay in place.

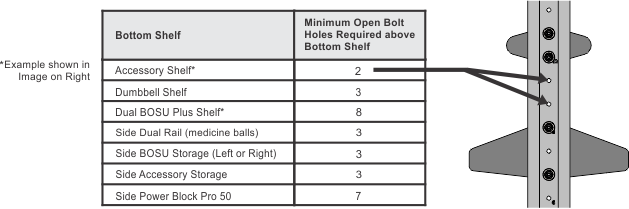

Shelf and Side Option Clearances

• Ensure shelves and side options have minimum spacing requirements, by counting bolt holes between the top bolt of the lower shelf and the bottom bolt of the shelf above it, using the bottom shelf as a reference for the key above.

• Image above is an “example” and indicates the bottom shelf is an Accessory Shelf.
