Attach Monocolumn to Base

Caution: Remove any protective covering / tape from the monocolumn and console support weldment prior to attaching to base! Failure to remove the protective covering can cause improper grounding!
  1. Push as much excess harness back into the monocolumn tube.
    Note: Avoid pinching harness while bolting.

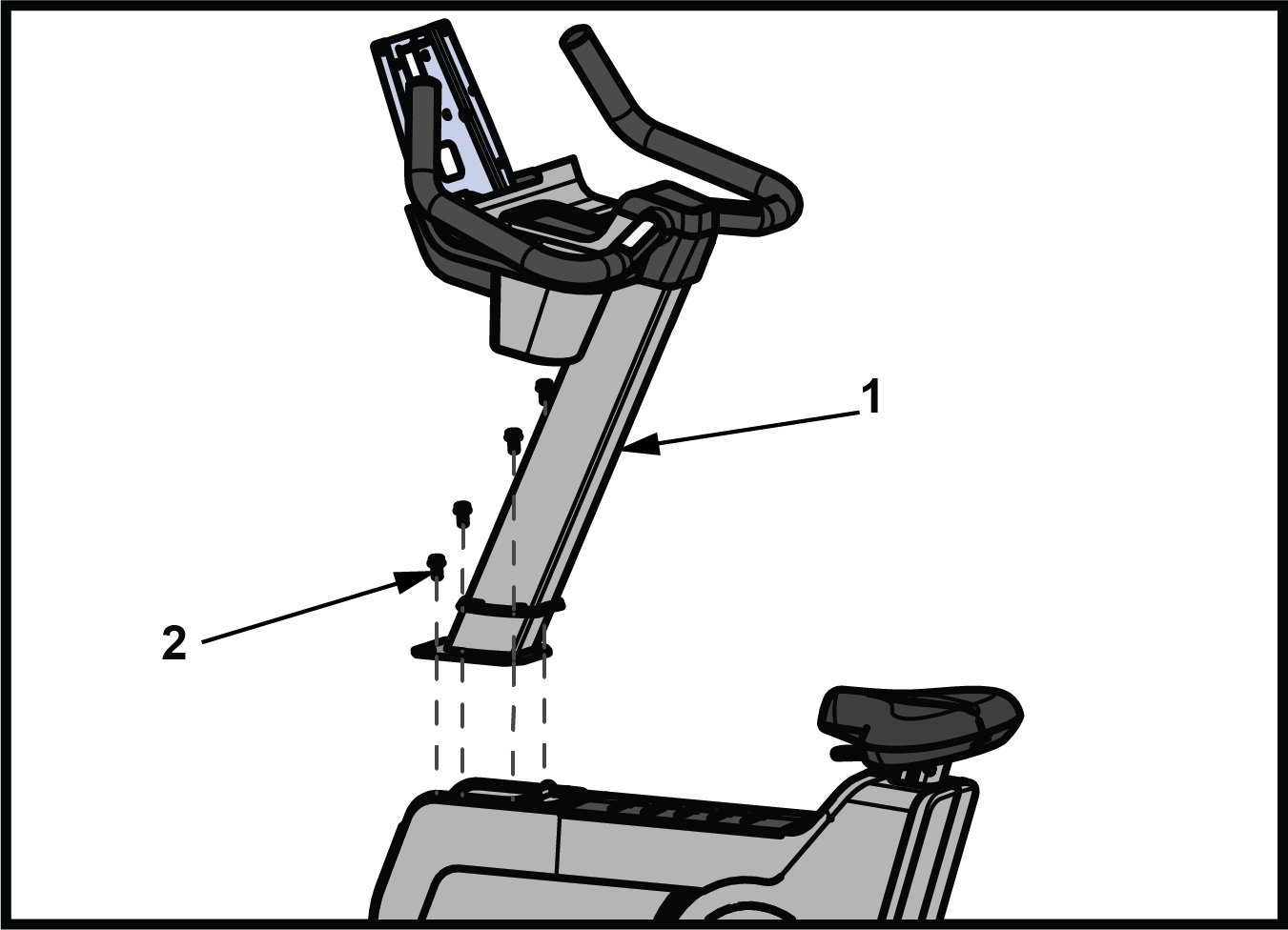

  2. Install monocolumn to base using four screws.
    Item Description Qty.
    1 Monocolumn 1
    2 M8 X 20 Flange Head Cap Screw

    Reuse the previously removed screws.

    		 4
  3. Thread the screws in numerical order. Torque to 37 Nm (27 ft. lbs.)
